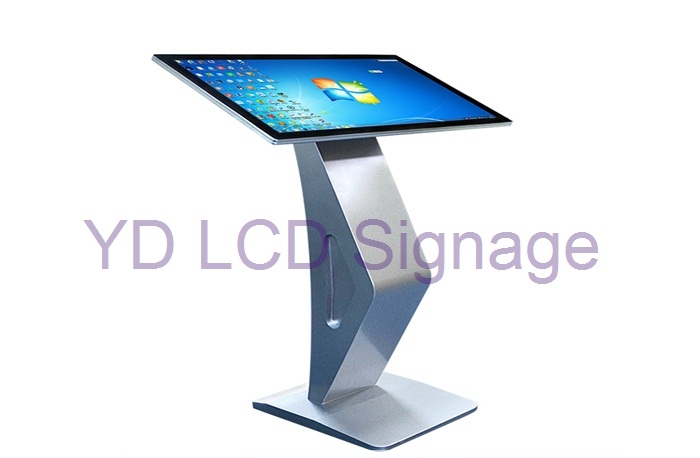

OEM Interactive Touch Screen Kiosk LCD Screen Android X86 Advertising Monitor in Shopping Mall for Information Desk
An touch kiosk is an electronic kiosk that built in with lcd, android, pc and touch screen, people can check information or finding way on the equipment.
Touch kiosks are common used in many areas. Stores display advertisement and put catalogs, discount information to attract people. Modern shopping mall will have some kiosks, some with HD for display advertising, some with touch screen put in the entrance for map directory.
Touch kiosk has many kinds, different application different appearance. And there are many external equipment, such as camera, payment, scanner, keyboard, NFC, RFID, printer, carcode scanner, card reader and so on.
Quick Details:
Full HD
Split Screen
Remote Control
Narrow Bezel
Large Angel of View
Portable
Feature:
LG A+ full new original LCD screen
OS:Windows 7 and Android 4.4 option
Touchscreen:12points capacitive touchscreen
Full flate, water-proof, RFID card reader
Network:RJ45, 3G, WIFI (optional)
Popular Choices:
1. Available size: 65" 70" 75" 86" 98"touch screen kiosk,
2. Windows system: supports customized windows 8.1/10 OS
3. Touchscreen: supports customized IR touch (10 points)/capacitive touch (10 points)
4. Optional: 3/4G module, camera, NFC, beacon, thermal printer, magic mirror
Specification:
| Panel Details | Panel Type | TFT-LED 65" |
| | Resolution | 3840×2160 |
| | Show Ratio | 16:9 |
| | Working Area | 1428.48mm x 803.52mm (H*V) |
| | Pixel Distance | 0.248 mm x 0.744 mm(H*V) |
| | Visual Angle | 178°(H) / 178°(V) |
| | Show Color | 16.7M |
| | Brightness | ≥360cd/m² |
| | Contrast Ratio | ≥4000:1 |
| | Backlight | TFT-LED |
| | Working Hour | 7*24-Hour interrupted |
| | Life Expectance | ≥60000 Hours |
| Touch Parameters | Type | IR or Nano Film Touch |
| | Touch tools | Finger or anything opaque |
| | Recognizable | ≥5mm |
| | Accuracy | ±1.5mm; sensitive touch 90% |
| | Multi-point | 2/4/6/10 optional |
| | Times | Unlimited |
| | First response | ≤10ms |
| | Lasting response | ≤5ms |
| |
| PC Configurations | Option1 | CPU:Celeron J1900 / Memory:4GB / HardDisk:500GB |
| | Option2 | Board:H61 / CUP:i3 / Memory:4GB / HardDisk:500GB |
| | Option3 | Board:H61 / CPU:i5 / Memory:4GB / HardDisk:500GB |
| | Option4 | Board:H81 / CPU:i7 / Memory:4GB / HardDisk:500GB |
| Power Consummation | Power Voltage | AC100V~240V (50/60Hz) |
| | | ≤200W (due to Motherboard and CPU option.) |
| | Standby | ≤3W |
| | Energy Efficiency | 0.85cd/W |
| Detailed Function | Video Format | MP4,3GP,MPG,AVI,WMV,FLV,SWF,RMVB,MKV,VOB |
| | Audio Format | MP3,WMA,AMR,OGG,AAC,WAV,FLAC,APE |
| | Image Format | JPG,BMP,PNG,TIF,ICO,GIF,TGA |
| | Play Mode | Horizontal, Vertical, Full Screen, Split Screen |
| | Log Management | Supportive to terminal log and playlist log |
| | Power Mode | Time-setting On or Off | Manual |
| Product Concerns | Housing/Shell | Steel sheet |
| | Panel Protection | Tempered glass (5mm) |
| | Speaker | 2*5W Stereo |
| | Operating system | Windows XP/ 7/8/Linux /Android |
| | Control Interface | USB2.0, RJ-45, FHD, VGA, DVI, MIC, WIFI, 3G |
| | Temperature | -30ºC to +50ºC |
| | Humidity | 20% to 80% |
| | Whole Size | ××(mm) (Customized) |
| | Whole Color | Black, Silver, White (Customized) |
| | Certificates | ISO9001/CCC/CE/FCC/RoHS/SECURITY |
| | Accessories | Remote Control, Power Cord, Key, Mounting bracket, Manual, Approval Certificate, Warranty Card |
| | Net Weight | 44 kg |
FAQ
Q1.How can I get a sample of digital signage for confirm the quality?
A:1.Please give the exactly parameter and requirements to us.
We can according to your specification give you a sample.
2.You can send us a sample, we can according to your sample give you a counter sample.
Q2.I am a small wholesaler, do you accept small order?
A:It's no problem if you are a small wholesaler, we would like to grow up with you together.
Q3.Are you a factory or trading company?
A:We are a direct factory/manufacturer.Also we have our own designer team
Q4.How about your guarantee?
A:We provide one year quality guarantee from the purchase date, except the man-made damage.
Besides, we support remote assistance in technical/software/installation, etc.And lifelong maintenance service.
Why Choose us?
1. Experienced engineers and sales with big lcd industry manufacturer and project background
2. ISO 9001 ,CE,ROHS, 3C,FCC Certificated products: touch screen kiosk, smart whiteboard touch screen and seamless bezel video wall
3. Full industrial display chain resources : LCD video wall,touch screen kiosk,all in one pc, interactive whiteboard,touch screen monitor,video wall controller,matrix, video splicing processor, matrix switcher and VGA HDMI cable etc accessories.
4. Original factory lcd screen,Reasonable price ,high quality and good after-sale tech support
5. Short delivery time ,flexible payment way
6. Quick response ,provide free training for customers.
